Versalift STP Cable Placer Bucket Truck
The Versalift STP Series is a versatile and high-performance line of aerial access and cable placing equipment tailored to a height range of 29 to 45 feet. This series offers exceptional flexibility and adaptability for tasks requiring precision and extended reach. Optional hydraulic extending and elevating winch and jib features provide additional functionality. Safety is paramount, with no protruding parts beyond the front or rear bumpers, ensuring a secure and hassle-free operation. Designed for light axle loading, these units reduce vehicle strain while maintaining stability. The Versalift STP Series is the ideal choice for your aerial access needs within this specific height range, offering enhanced payload capacity and maneuverability for your crew.
Specs
- Working Height: 40.5 ft (12.19 m)
- Height to Bottom of Platform: 35.6 ft (10.67 m)

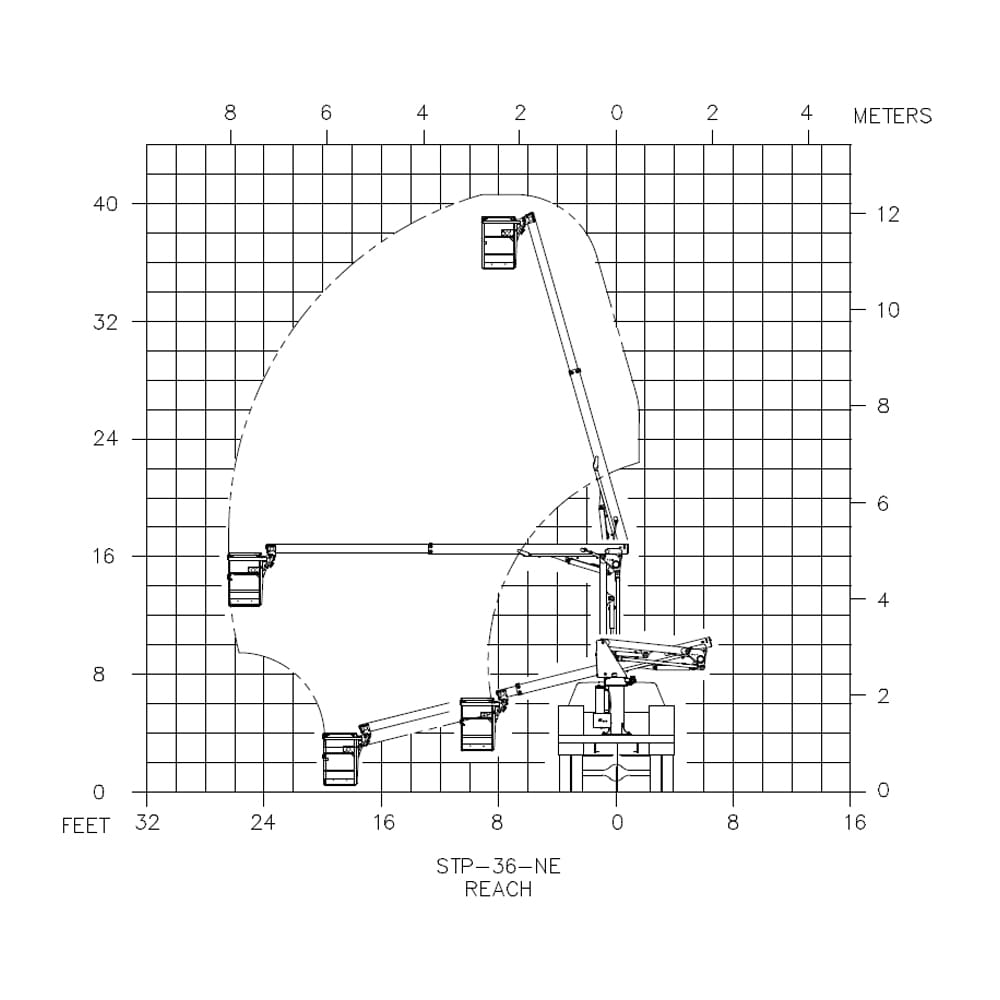

- Horizontal Reach: 26.5 ft (8.84 m)
- Stowed Travel Height: 10.5 ft (3.35 m)
- Platform Capacity: 350 lbs (158.76 kg)
- Non-insulated
- Material Handling: No
Boom
- Inner/Outer Boom Articulation: -20 to +80
- Inner Boom Extension: 110 in (2.79 m)
- Boom Rotation: 370 non-continuous
Hydraulic System
- Hydraulic Controls: Full Hydraulic
- Operating Pressure: 2250 psi (158.19 kg/cm²)
- Flow Rate: 2 gpm (7.57 lpm)
- Filtration: 10 micron return | 100 mesh suction
- System Type: Open Center
- Power Source: PTO Pump
Vehicle Requirements
- GVWR: 17500 lbs (7937.83 kg)
- Cab to Axle: (minimum) 60 in (1.52 m)
